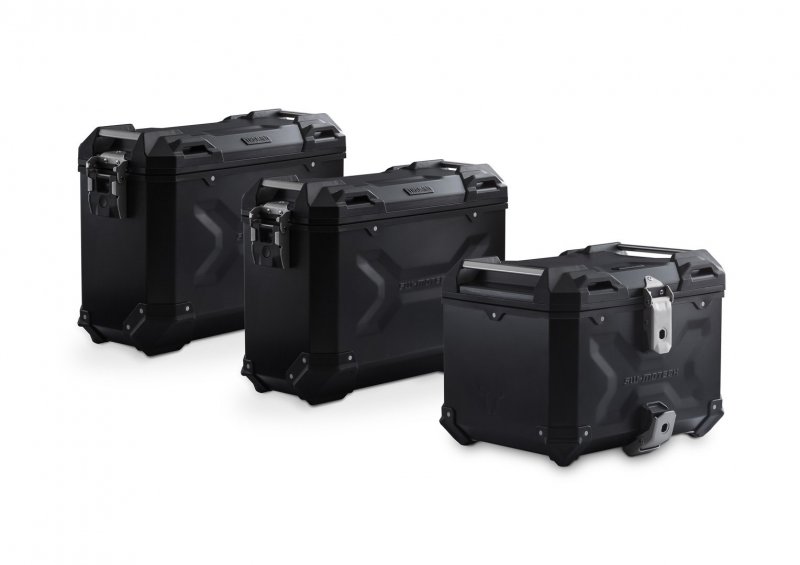

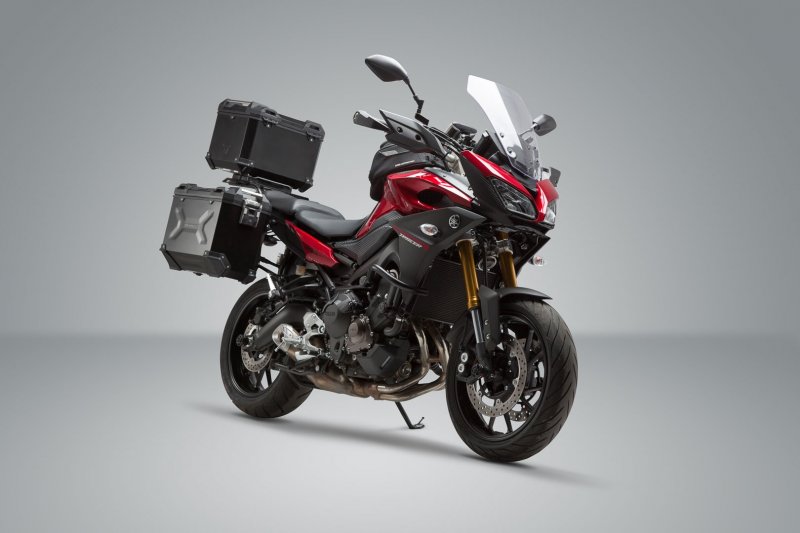

Adventure set luggage

This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases. Our sturdy TRAX ADV aluminum cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

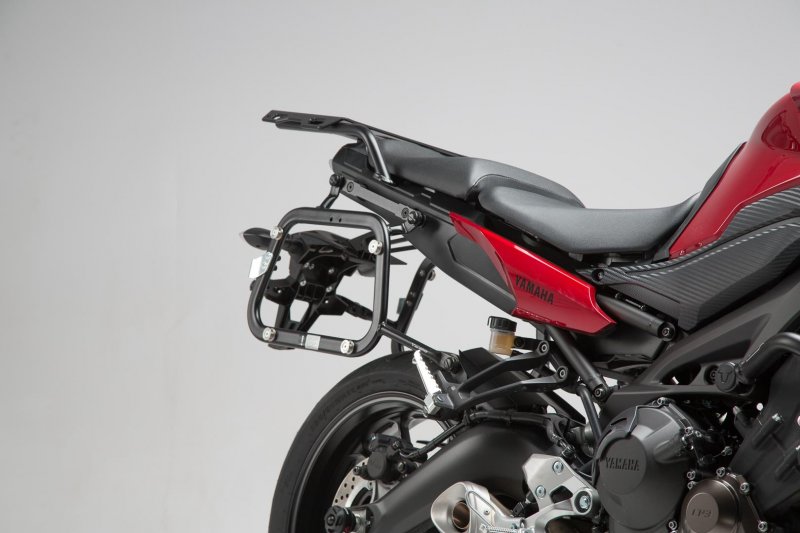

EVO Side carrier
- Detachable carrier for use with almost all common case systems
- Attachment and removal within seconds with quick-release fasteners at inconspicuous attachment points
- The SW-MOTECH case adapter (available separately) makes it suitable for TRAX, AERO, Givi/Kappa, Krauser, Hepco & Becker, Shad cases
- Made of oval round tube close to the vehicle
- High functionality and stability
- Details
- Material: Steel
- Surface: powder coated
- Color: black
- Width built onto motorcycle: 42,0 cm / 16.5 in
Adapter kit for EVO side carriers
- Adapter kit for attaching TRAX ADV/ION/EVO or NANUK side cases to SW-MOTECH EVO side carriers
- Mounted on to the existing holes of the SW-MOTECH EVO side carrier
- For left and right sides
TRAX ADV L Aluminium case
- Model for the left side of the motorcycle
- Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
- Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: powder coated
- Color: black
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: 5,4 kg / 11.9 lb
- Total Volume: 45,0 l
TRAX ADV L Aluminium case
- Model for the right side of the motorcycle
- Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
- Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: powder coated
- Color: black
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: 5,4 kg / 11.9 lb
- Total Volume: 45,0 l
TRAX lock set
- Matching locks
- Compatible with side cases and top cases from the TRAX ION and TRAX ADV series
Anti-theft protection for EVO side carriers
- Anti-theft protection for EVO side carriers
- With the anti-theft protection, any two quick release fasteners can be replaced
- Set for right and left EVO side carriers, consisting of 2 matching locks and 2 identical keys
Multi-tool key chain attachment
- Multitool as practical key chain
- Quick-release fastener opener for EVO carriers
- Hex key (14 mm) - ideal for many motorcycle mirrors
- Hex keys in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- Key chain eyelet
- With laser-etched SW-MOTECH logo
- Details
- Material: Stainless steel
- Surface: brushed
- Color: silver
ALU-RACK Rack
- Bike-specific development and high-precision CNC production process ensure the best fit
- Perfectly suited to the motorcycle's profile
- Laser cut from aluminium alloy
- Effective corrosion protection thanks to its powder coated surface
- Can also be used in combination with PRO / EVO side carriers and TRAX side cases
- Details
- Material: Aluminum
- Material strength: 0,60 cm / 0.24 in
- Surface: powder coated
- Color: black
- Total Weight: 3,1 kg / 6.7 lb
Adapter plate for ALU-RACK
- For TRAX top case models
- For attaching a top case to an ALU-RACK.
- QUICK-LOCK quick-release fasteners allow you to mount and dismount within seconds
- High strength thanks to reinforcement and three-point locking system
- Made from extremely sturdy plastic
- Details
- Material: Plastic
- Color: black
TRAX ADV Top case
- Protection from corrosion and wear due to black powder coating
- Premium top case made from 1.5 mm-thick aluminum
- Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
- 100% water- and dustproof due to robotic welding and punch rivet technology
- Theft protection: Case lid and case can be locked when on the carrier
- High stability thanks to the visually appealing and functional embossed sheet metal
- Additional protection from corners made of glassfiber-reinforced polyamide
- Easy to clean surface
- Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: powder coated
- Color: black
- Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
- Total Weight: 4,8 kg / 10.6 lb
- Total Volume: 38,0 l
TRAX M/L expansion bag
- Waterproof accessory bag that can be lashed onto side cases
- For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
- 15 litres of additional storage, padded
- Circumferential, waterproof zipper enables quick access to the entire contents
- Overlapping lid is secured using plastic clips
- Divider for custom organisation of the interior
- Made of robust, easy to clean material
- Sleek design with reflective details
- Sturdy carrying handle
- 8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)
- Details
- Material: 500D Polyester
- Color: black
- Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
- Total Volume: 15,0 l

Included in delivery

1 x TRAX ADV L Aluminium case, 45.00 l, black, right
1 x TRAX ADV L Aluminium case, 45.00 l, black, left
1 x TRAX ADV Top case, 38.00 l, black
1 x EVO Side carrier
1 x Adapter kit for EVO side carriers
1 x ALU-RACK Rack
1 x Adapter plate for ALU-RACK
2 x TRAX M/L expansion bag, 15.00 l
1 x TRAX lock set
1 x Anti-theft protection for EVO side carriers
Mounting instructions
Mounting material

Details

Total Weight: 18,7 kg / 41.1 lb
Total Volume: 158,0 l
